evoENERGY

BE AUTONOMOUS

Travel in complete freedom or work
independently with our range of products.

Batteries | Solar panels | Electrical accessories

Energy
Hub

The Energy Hub aims to offer feasibility and facilitation for utility vehicles to work in neighborhoods, public gardens, emergencies, and even underground garages with enhanced efficiency. The Energy Hub is integrated with a high-performance lithium battery and booster charger . The compact design greatly saves footprint and installation time.

We also offer surrounding products like inverters, extended battery packs, PV panels, etc. to work with the energy hub as a one-stop service..

High efficiency lithium battery

High performance lithium battery designed for high current discharge, i.e. 150A and 200A DC for 10 minutes.

Powerful vehicle charging

The built-in 60A battery booster can provide a full charge with approximately 1,5 hours to 2 hours of driving.

Flexible

Inverters of different sizes can be used, from 700W to 2000W. A 2kW combi can also be used to charge from shore power.

Easy installation

While the installation of the distributed unit takes hours, the ENERGY HUB is equipped with plug-and-play cables and can be installed in just 15 minutes

Mobile monitoring via the cloud

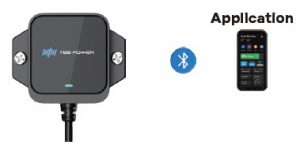

Monitors integrate a Bluetooth support application for the cell phone. With an additional data key, fleet management can be done remotely via the cloud.

Energy Hub EH128L-D

Built-in a high performance lithium battery 12V 105Ah
- Continuous discharge current 150A
- Peak discharge current 200A for 10 minutes
- Over 3000 cycles at 100% DoD at 25°C
- With heating element to support charge in cold winter
Built-in an euro-6 compatible booster 12V 60A
Support external expansion parallel to a lithium battery 12V 105Ah
- Extended system usage time
With 4 DC outputs
- 120A as constant and 150A 4 minutes for Inverter
- 120A as constant and 150A 4 minutes for DC load
- USB 5V 2A x 2
- 10A 12V socket for cigarette ignition

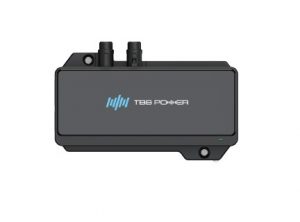

Compatible with external 4G module Data Stick
- The system can be monitored through the APP and the website.
With 3 dry contact outputs
DC input / output with Anderson terminal for plug and play
Compact size and light weight

LIGHT &
COMPACT

Unlike traditional systems consisted of lead acid batteries and individual products, Energy Hub features integrated design with high performance lithium battery which keeps the overall weight below 20kg and meantime with a much smaller footprint.

Designed with concept of plug and play, the installation time of Energy Hub can be dramatically reduced.

HUB ENERGY consists of the following components:

eRAY Inverter – IH Series

IH series inverters can be used to power AC loads such as microwaves and power tools

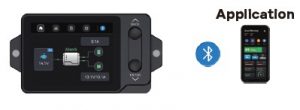

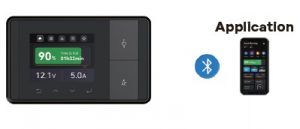

External MEH – System monitor

Battery charge display
Inverter output data: voltage, current, power
Power on/off Energy Hub and UPS
With Bluetooth connectivity for support via mobile APP

Bidirectional inverter
Kinergier Mobile

The CM2.0L 2kW combo can be used
Recharge completely from the 230V mains in one hour
Supply any heavy inductive load such as an air compressor, electric saw, etc.

External data logging cable

Optional GPRS or Wifi version can operate cloud-based fleet management at an additional cost to monitor the daily performance of the installed Energy Hub.

Discover below our catalog of electrical products

Inverters

Bi-directional Inverter

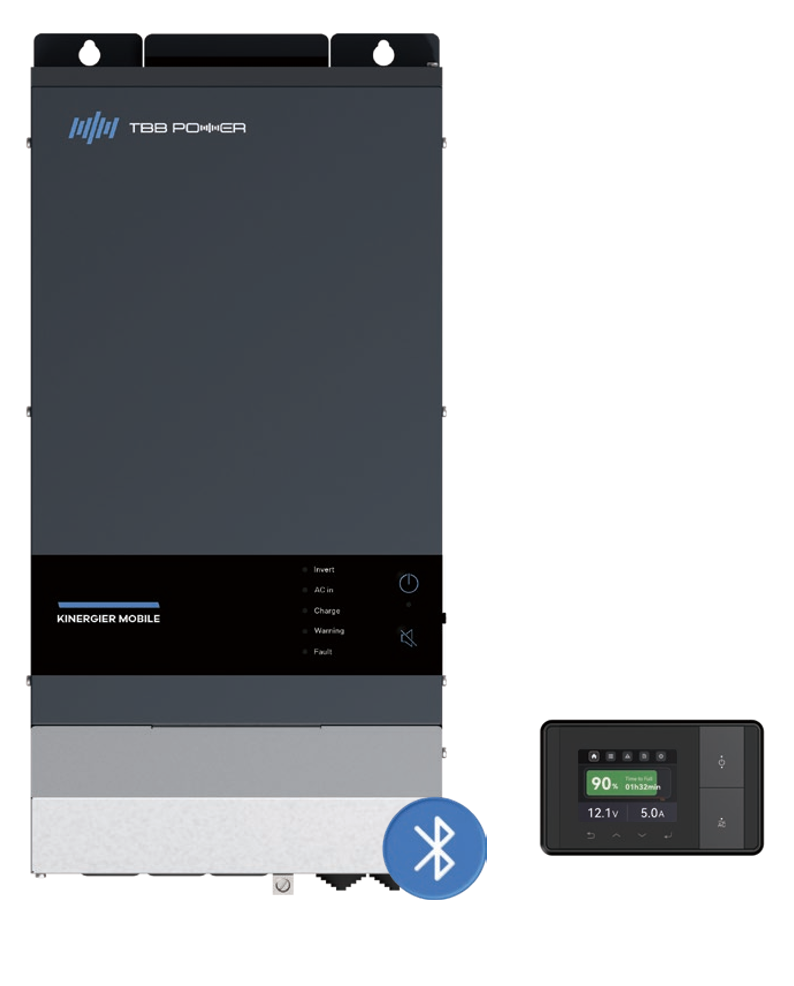

KINERGIER MOBILE

12/24VDC 2kW – 3kW 230VAC

Designed for mission-critical applications, Kinergier Mobile delivers high reliability, performance and industry-leading efficiency. Its distinguishing surge capability makes it capable of powering the most demanding appliances, such as air conditioners, compressors, vacuum cleaners and various power tools.

Bi-directional Inverter

KINERGIER MOBILE

48VDC – 3kW – 5kW

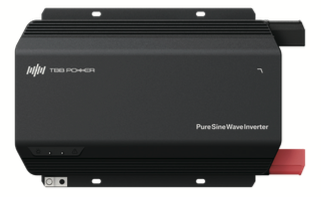

Pure Sine Wave Inverter

eRAY SERIES

12/24VDC – 400W – 2kW

eRAY inverter could supply a steady pure sine wave AC to various load on board, such as power tools, coffee machine, microwave or sensitive electronics. It could bring home comfort and convenience for your life or work on board.

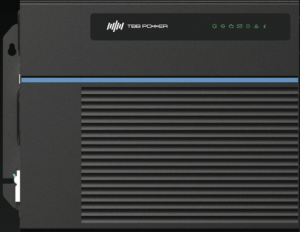

Bi-directional Converter

SWORD

12V to 48V

1200W

SWORD Bi-directional converter was developed to answer the challenge of providing energy independence for motorhomes. It could take energy from a 12/24Vdc alternator and convert it into 48Vdc performing quick charging while driving, max of 1.4KWH can be charged per hour.

Chargers

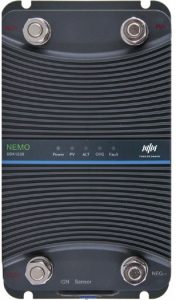

Booster Charger

NEMO SERIES

12/24VDC

DMT/DM draws power from alternator to perform a right and quick charging for auxiliary battery while you are driving. Compatible with Euro 6 engine, DMT/DM could maintain the charging with a stable output with smart alternator to assure your battery getting a fully charging in the shortest time without worry about overcharging or undercharging.

Smart Battery Charger

TRIDENT

12/24VDC

10A / 25A / 40A – 12A / 20A

Combined with up to date technology and our knowledge with batteries, Trident smart battery charger was especially designed for mobile and marine application, it was an ideal solution for your battery charging on board.

Fast charger

FLASH

450VDC 20A

As a fast charger adaptable to the DC charging stand, Flash 7 ensures amazing fast charging for the 48V lithium battery, without worries of power consumption anymore.

Batteries

Lithium Battery Module

R SERIES LITHIUM BATTERY

Tailored for motorhome and caravan applications, the TBB R series battery delivers a chassis battery solution to meet the challenge of more and more lithium battery installation on board, which guarantees user safety and saves precious installation space.

Lithium Battery Module

M12 SERIES LITHIUM BATTERY

12VDC

105Ah / 200Ah / 400Ah

TBB’ s M12 series lithium iron phosphate battery comes with high continuous discharge current, which makes it as one of best in the market to well handle heavy duty appliance for on-board application such as air-conditioner, coffer maker, microwave oven etc.

Other components

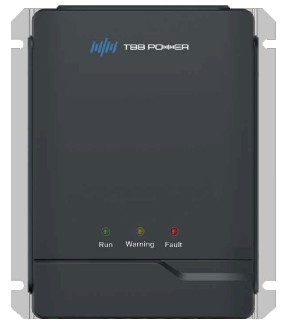

MPPT Solar Charge Controller

SOLAR MATE

12/24VDC

SF100-30 / SF100-50

With MPPT technology, the SF100 series solar charge controller enables maximum energy tracking for solar charging. This technology allows the controller to track the maximum power point of an array quickly and accurately in any environment, obtain the maximum energy of solar panel in real time, and charge the battery at maximum current.

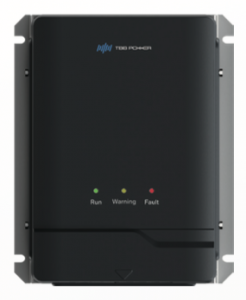

MPPT Solar Charge Controller

SOLAR MATE

48VDC

SP150-25-BT

With MPPT technology, the SP series solar charge controller enables maximum energy tracking for solar charging. This technology allows the controller to track the maximum power point of an array quickly and accurately in any environment, obtain the maximum energy of solar panel in real time, and charge the battery at maximum current.

Kit de mesure pour batterie ET54-56-img2

Battery Management

BATTERY MONITOR KIT

TBB’s battery monitor kit consists a precise battery shunt and a display panel. This kit supports 2 batteries and shows you real time data of your battery system. Combined with up to date technology and our knowledge with battery, the battery monitor kit is perfectly suitable for marine, utility vehicles, recreational vehicles, golf carts, electric forklifts, etc.

USB Charger

ET54/56

Type C: 5V/3A 9V/3A 12V/2.5A

ET56 is designed to satisfy the increasing need on board to charge smart phones and tablets. It can be easily installed on any vehicle and allow two smart phones to be charged respectively.
